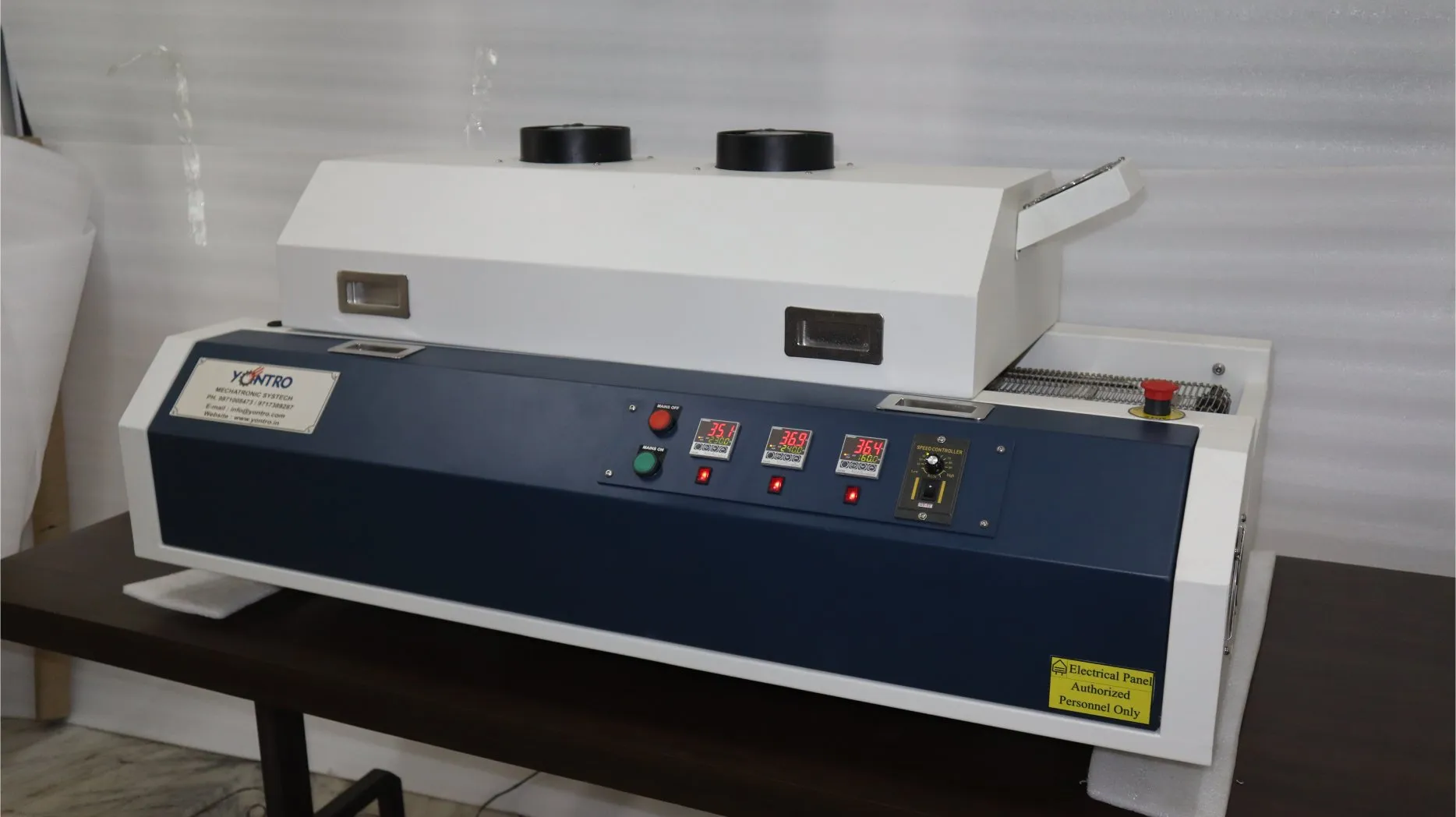

This is a table top machine. For transport of PCB, an enrober type mesh belt is provided. The machine has 3 bottom and 2 top zones.
It incorporates discrete PID controllers for controlling the temperature in the different zones.
| Model Features | YMS-5500-TT |
|---|---|
| Machine Type | Table Top Model |

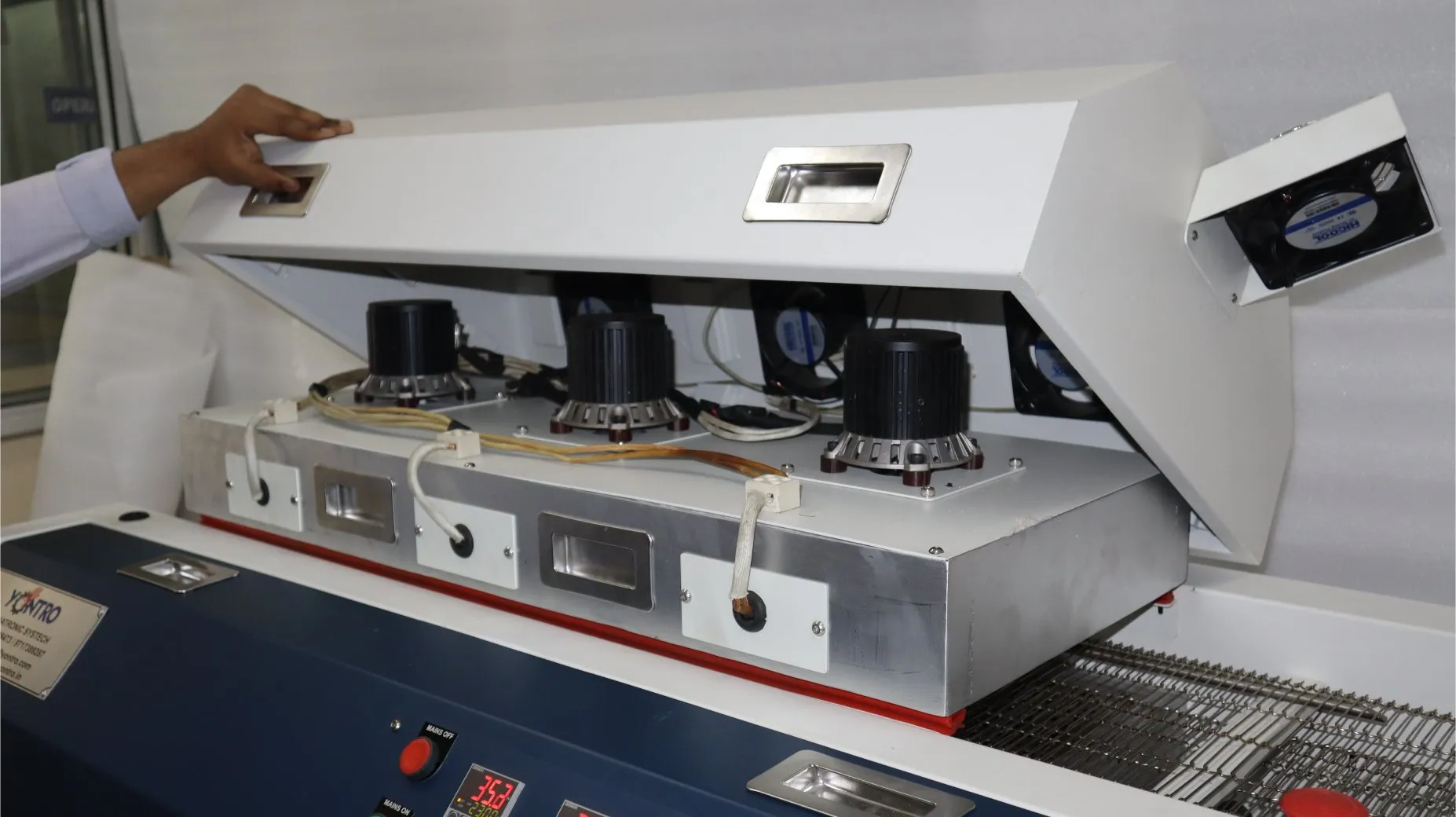

| Heating zones | 3 Top + 2 Bottom |
| Heating zone length (mm) | 1000 mm |
| Dimensions (mm) | L – 1400 W – 700 H – 650 |
| Weight | 150 Kg |
| Power supply | 440V AC, 50 Hz, 3 Ph |
| Power | 5.0 KW |
| Heating time | 20 min |
| Heat Type | Upper/Bottom Zones –Forced Hot Air Convection |

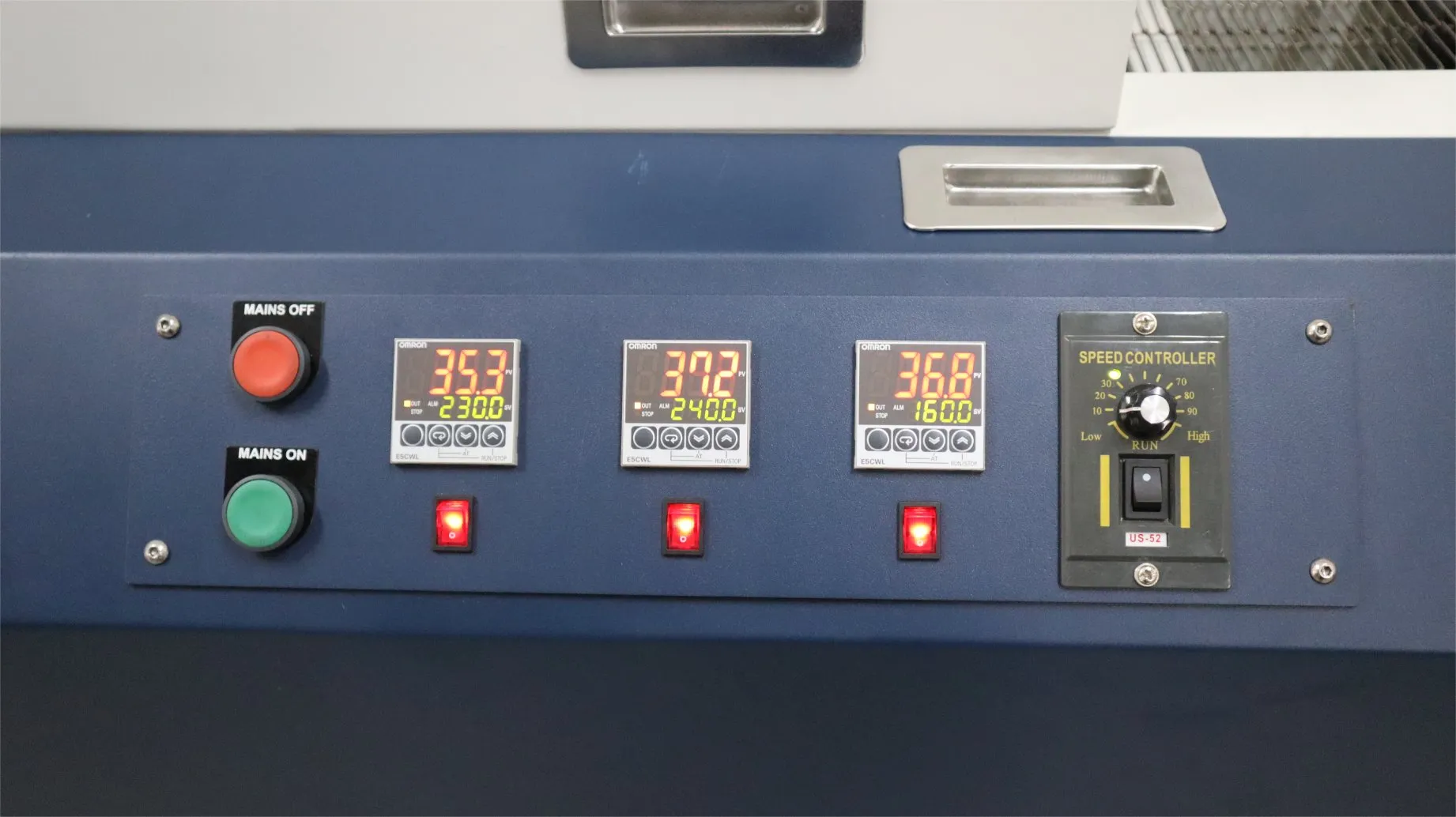

| Temperature Control | Close Loop PID + SSR |
| Temperature Range | Ambient – 300 Degree C |
| Temperature Accuracy | +/- 2 Degree C |
| Cooling | Fan Cooling external |

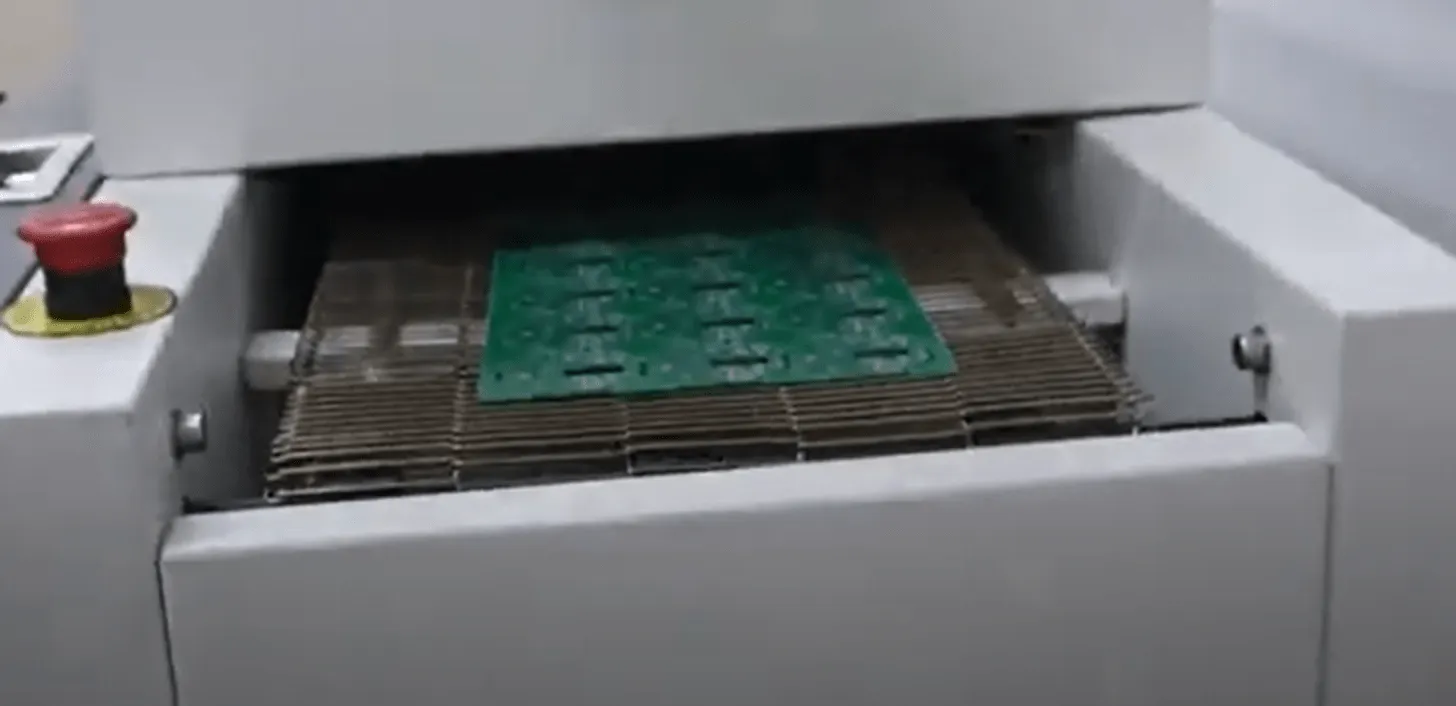

| Conveyor Type | Stainless Steel Mesh Belt |
| Conveyor Height | 300 mm +/- 20mm |
| Construction | Table top model |
| Conveyor speed | 0-1.2 Mtr/Min |
| Conveyor Direction | Left to Right |
| Belt Width | 300 mm |
| PCB Size | Up-to 300 mm |
| PCB Clearance -Height | 25 mm |
| Solder Type | Lead Free / Leaded Solder |
