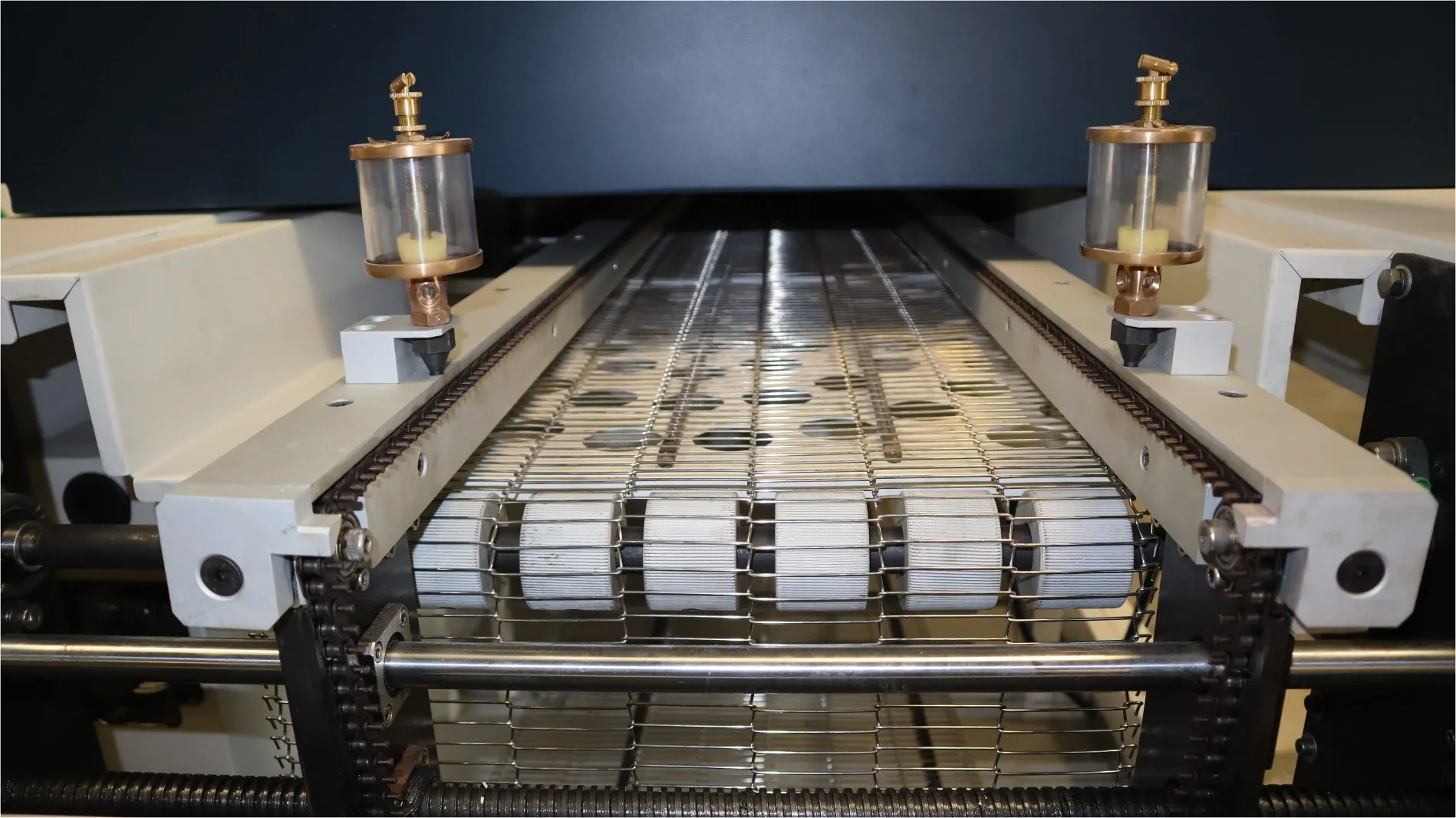

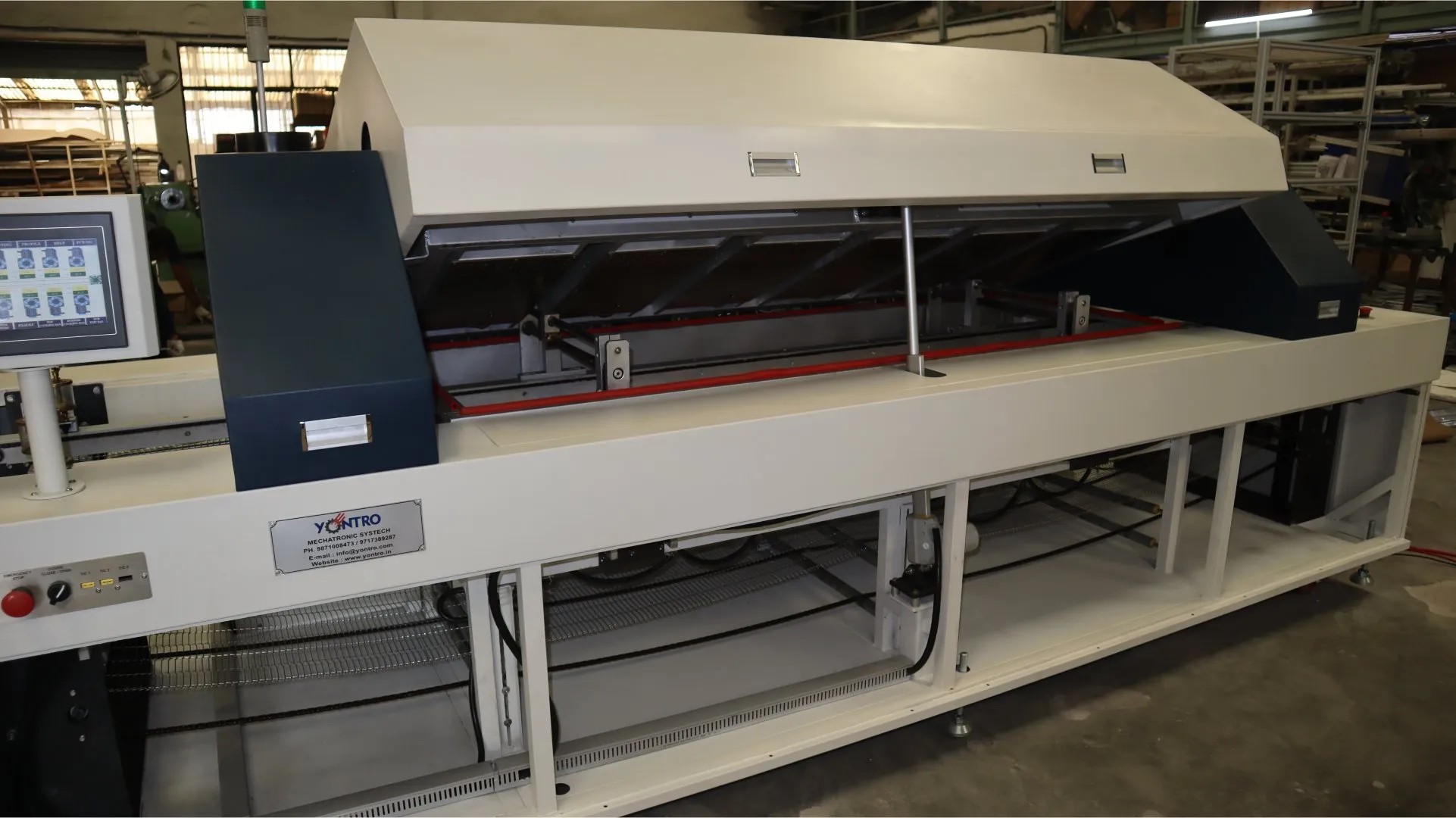

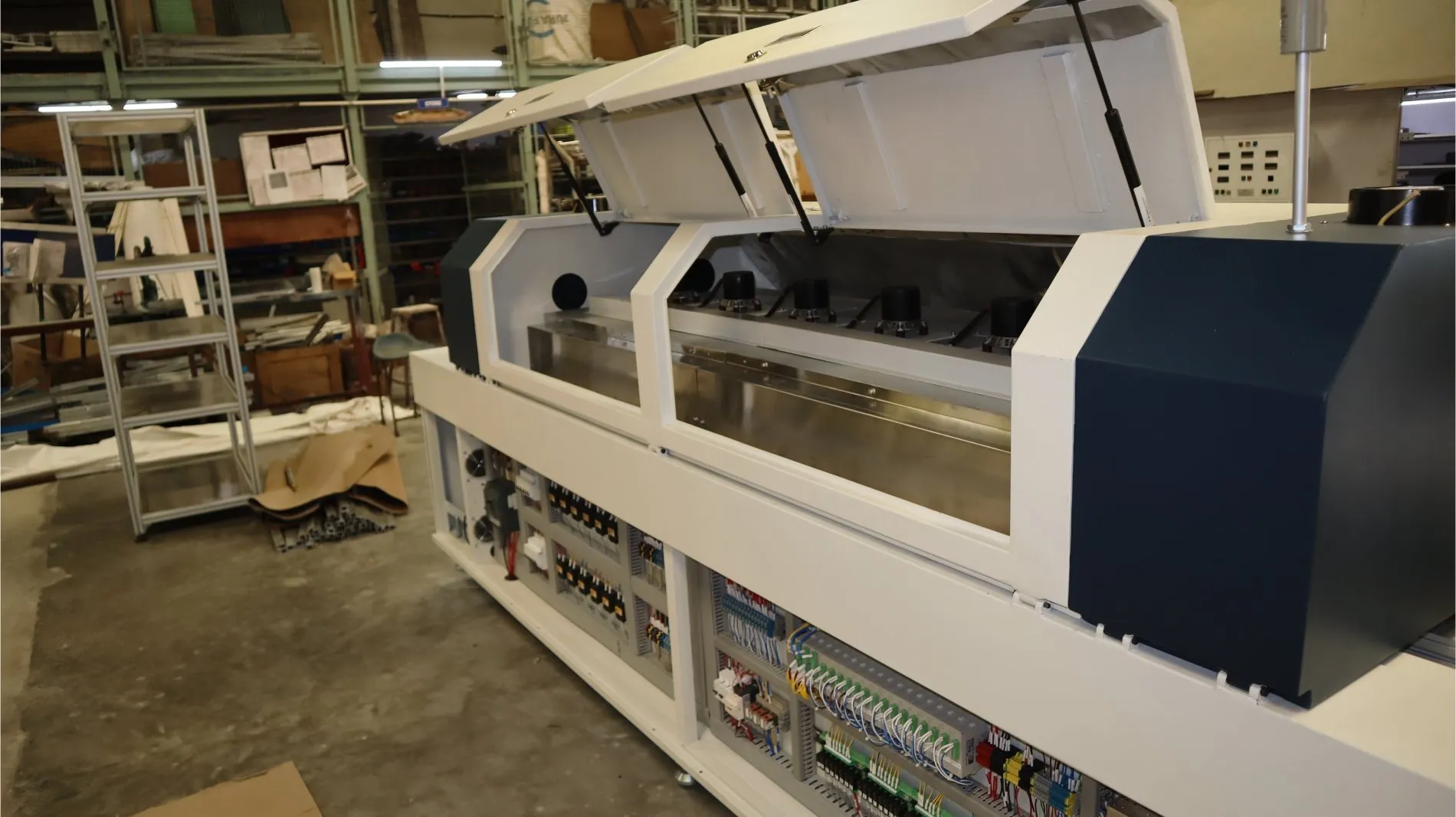

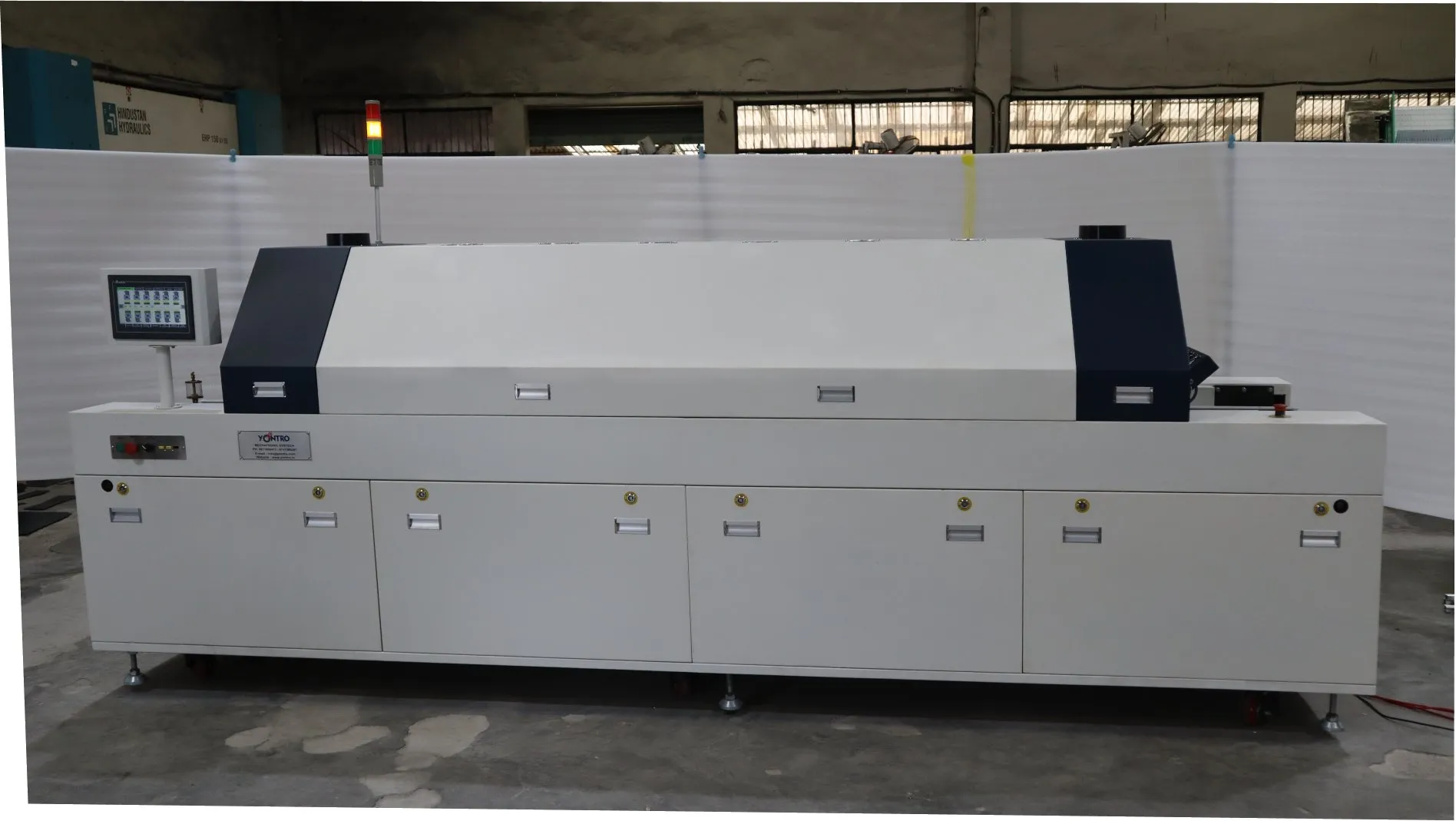

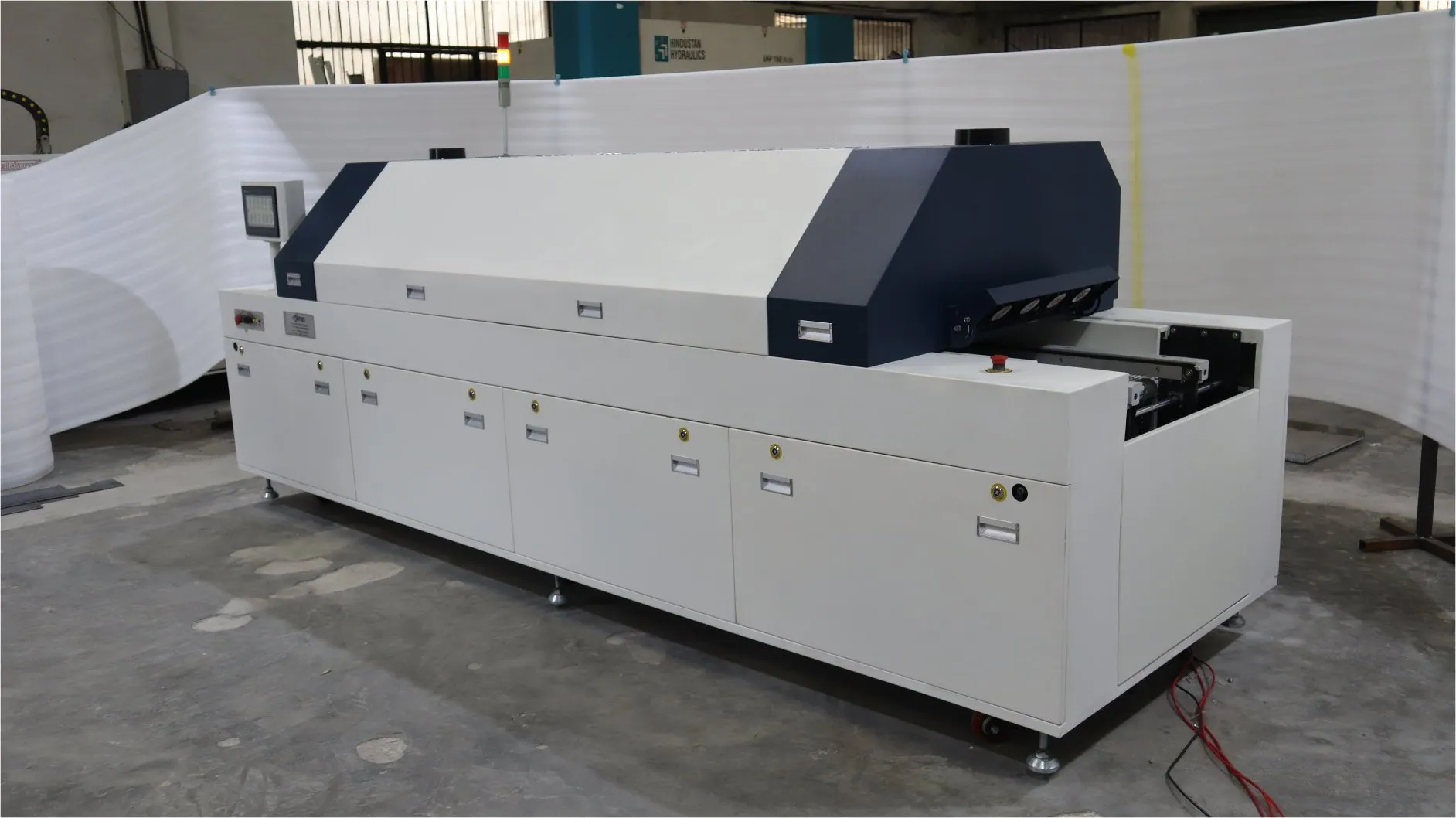

This is a stand-alone floor model. For transport of PCB, an enrober type mesh belt along with an adjustable width pin chain conveyor is provided.

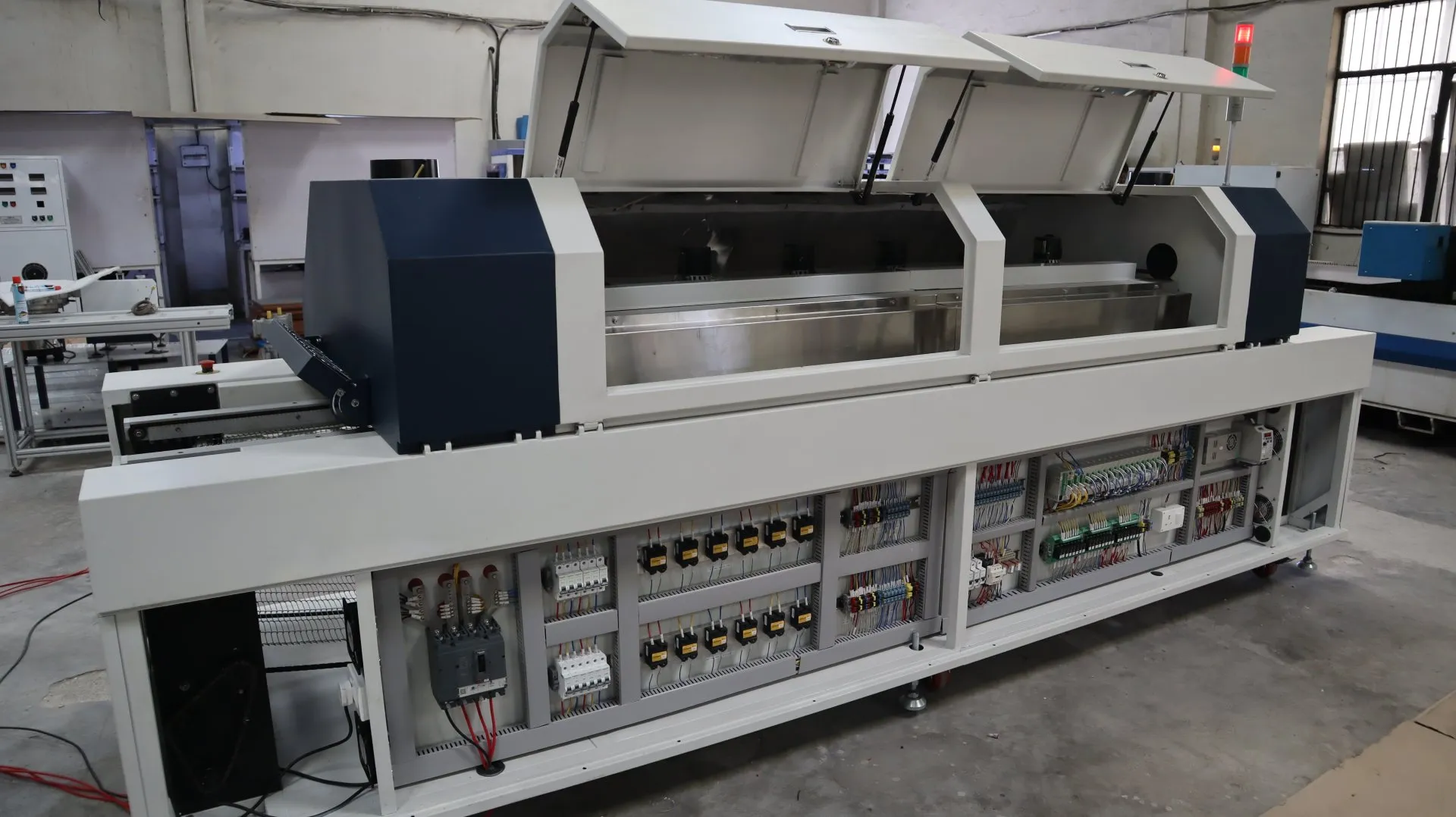

The incorporates a HMI (Touch panel) + PLC control. And has an in-built profiler, for displaying the temperature graph. And also incorporates a data logger to store the parameter data at different time intervals.

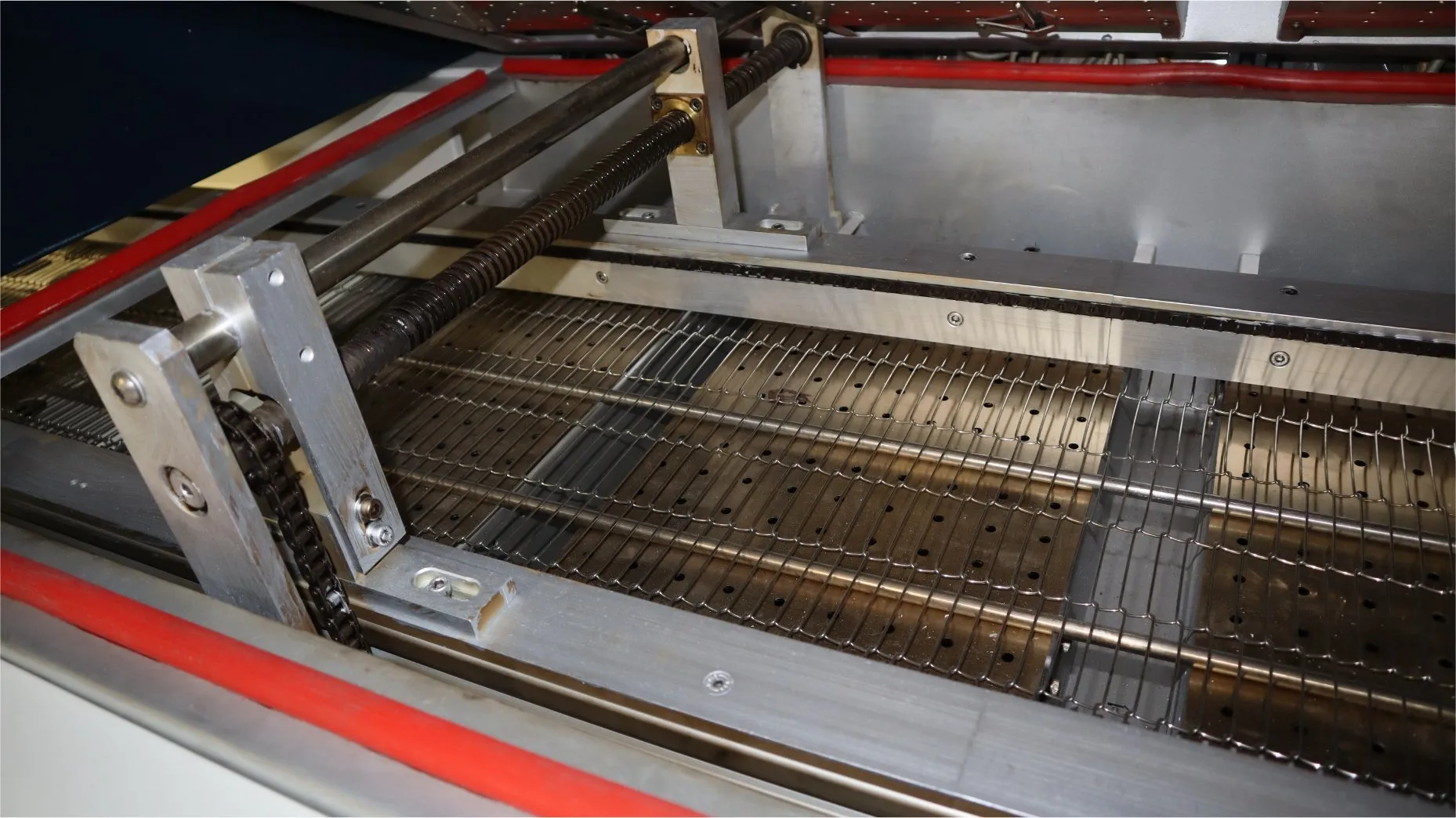

| Model Features | YMS-6600-LF | YMS-8800-LF |
|---|---|---|
| Heating Zone Length | 2900 mm | 3600 mm |
| Dimension | L-3950 W-1250 H-1500 mm | L-4700 W-1250 H-1500 mm |
| Weight | 300 Kg | 1750 Kg |
| Power Supply | 440V AC, 50 Hz, 3 Ph | 440V AC, 50 Hz, 3 Ph |
| Power- Start up | 28 KW | 38KW |
| Power – Operation | 8 KW | 12 KW |
| Heating Time | 80 minutes | 80 minutes |
| Control Type | Touch Screen Control (PLC+HMI) | |
| Heat Type | Upper/Bottom Zones –Forced Hot Air Convection | |
| Temperature Control | Close Loop PID + SSR | |
| Temperature Range | Ambient – 350 Degree C | |
| Temperature Accuracy | +/- 2 Degree C | |
| Cooling | +/- 2 Degree C | Fan Cooling Outside Tunnel |
| Conveyor Type | Stainless Steel Mesh Belt + Pin Chain Conveyor | |
| Conveyor Height | 900 mm +/- 20 mm | |
| Conveyor Speed | 0-1.8 M/min | |
| Conveyor Direction | Left to Right | |
| Belt Width | 450 mm | |
| PCB Size | 50-350 mm | |
| PCB Clearance -Height | 25 mm | |
| Solder Type | Lead Free / Leaded Solder |
This is a stand-alone floor model. For transport of PCB, an enrober type mesh belt along with an adjustable width pin chain conveyor is provided.
This is a table top machine. For transport of PCB, an enrober type mesh belt is provided. The machine has 3 bottom and 2 top zones.
