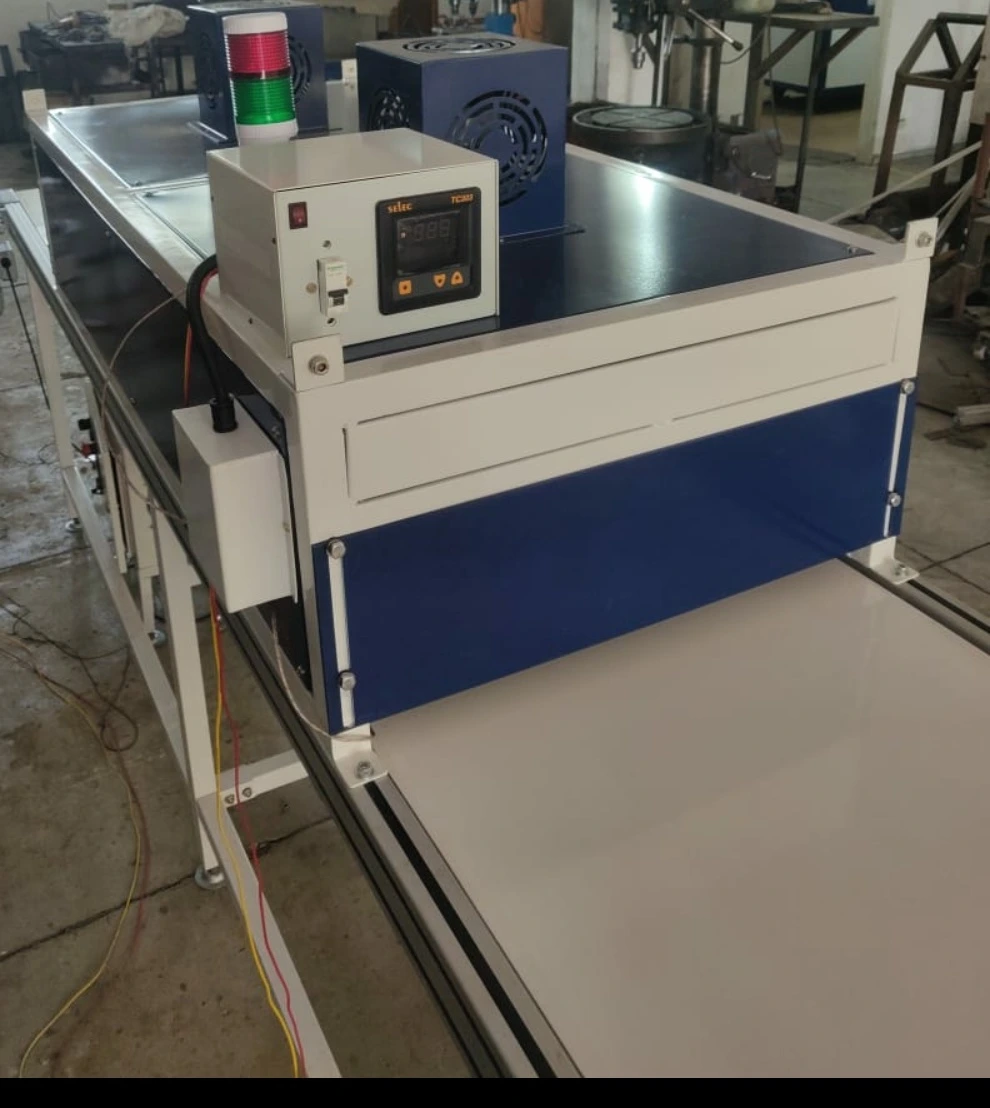

An oven conveyor, also known as a conveyor oven, is primarily used for drying, curing, baking or pre-heating application. Depending upon the temperature requirement and the nature of product to be processed, the type of belt is chosen. This type of conveyor can be made with PVC, PU coated or Wire mesh belt material.
|
DIMENTIONS
|
|
|---|---|
| L | TOTAL LENGTH OF CONVEYOR |
| L1 | CONVEYOR LENGTH BEFORE TUNNLE |
| L2 | TUNNLE LENGTH |
| L3 | CONVEYOR LENGTH AFTER TUNNLE |
| W | BELT WIDTH |
| TW | TOTAL WIDTH |
| H1 | WORKING HEIGHT |
| H2 | CLEAR HEIGHT INSIDE TUNNLE |
| TH | TOTAL HEIGHT |
| Specifications | Oven Conveyor |
|---|---|
| Application |
• For drying ink of screen printed parts • For shrink wrap application • For curing or pre-heating appli-cation |
| Belt Width | 100 mm –12900 mm |
| Belt Material | PU / Mesh Belt (SS or MS) |
| Working Height | 750 / 900 mm |
| Height adjustment | +/- 50 mm |
| Ht. Adj. Method | Through Levelling Feet |
| Temperature Range | 50 to 300 degree C |
| Heater Type | Tubular Heater/ IR Heater |
| Temperature Control | PID + SSR control |
| Air circulation | Impeller / Blower |
| Conveyor Structure | Powder coated MS pipe frame / SS frame / Anodized Al profile |
| Conveyor Speed | Variable as per user requirement |
| Item Information to be provided | • Item to moved • Weight of one unit • Total weight on conveyor |
This type of conveyor find application in Assembly lines, packing lines, inspection lines or general material transfer.
