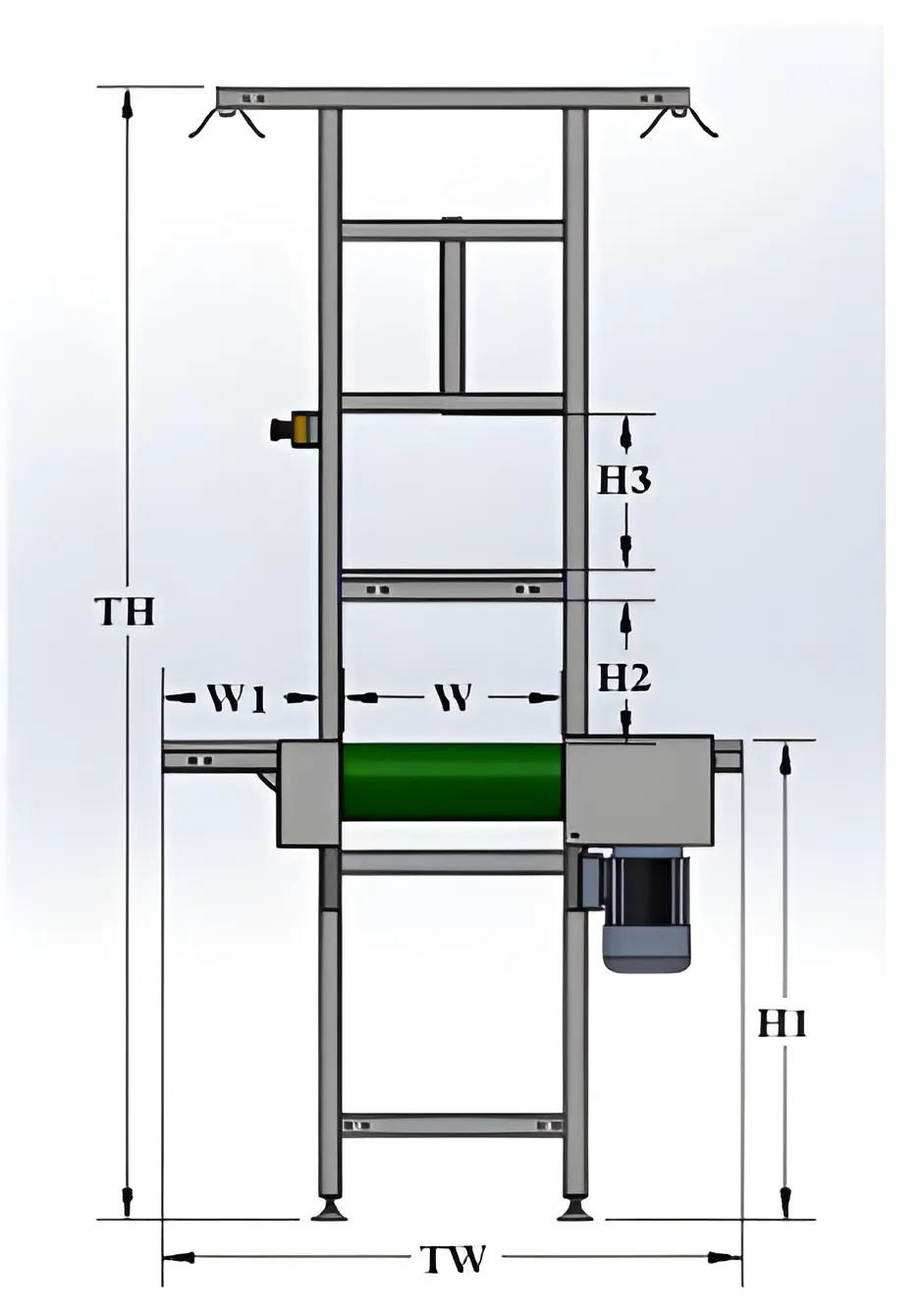

| SPECIFICATIONS |
STANDARD |
OPTION |
| Belt Width |
400 mm |
100 mm to 1800 mm
In multiples of 50 mm |
| Conveyor Length |
As per user requirement |
| Belt Type |
Option of PVC / PU / ESD / Rough Top or Super Grip
|
| Belt Thickness |
2.0 / 3.0 / 4.0 / 5.0 mm |
| Belt Support on Top |
Powder coated MS Panel |
SS panel / Roller bed |
| Belt Support Bottom |
Rollers at a distance of 1800 mm |
Rollers as per design requirement |
| Structure |
Powder coated MS pipe frame |
SS frame / Anodized Al profile |
| Conveyor Speed |
Fixed or Variable as per user requirement |
| Working Height |
750 mm |
900 mm OR As per user requirement |
| Total Height |
2000 mm |
As per user requirement |
| Height adjustment |
+/- 50 mm |
As per user requirement |
| Ht. Adj. Method |
Through Levelling Feet |
Through bracket or other arrangement |
| Side Working Platform Parallel to Belt |
- Width 300 mm
- Laminated Board (White)
|
- Wooden Board with ESD/PVC mat
- SS Sheet Metal Panel
- Powder coated MS Panel
|
| Independent Working Platform Perpendicular to Belt |
- Size-As per requirement
- Laminated Board(White)
|
- Wooden Board with ESD/PVC mat
- SS Sheet Metal Panel
- Powder coated MS Panel
|
| Shelf above Belt |
Provided of Laminated Board(White Laminate) |
- Not Required
- Wooden Board with ESD/ PVC Mat
- SS Sheet Metal Pane
- Powder coated MS Panel
|
| Display Board |
Acrylic Sheet(Green) |
- Pin Board with colour of your choice
- White Board
- Magnetic Board
|
| Lighting |
We provide sheet metal reflectors one per 6 feet module on both
side of belt |
- LED Tube light one at every 6 feet module on both side
of belt
- Qty of lights as per your requirement
|
| Power Socket |
Provided on request with following information :
- Combination of Socket & Switch required per board with current specification
- Number of power board per 6 feet module
- Placement of the Power board
|
| Pneumatic Line |
Provided on request with following information :
- Number of outlets per 6 feet module
- Output Required by QRC or Ball Valve
- Placement of Line above the top post or beneath the
belt
|
| Fume Exhaust Pipe Line |
Provided on request with following information :
- Number of exhaust outlets per 6 feet module
- Inline Fans – Imported or Yontro Make
- Standardly one Inline fan is provided per 12 feet
length
|
| Other Optional |
Provided on request with following information :
- Tool Slider for Spring Balancer on Top Post
- Sensor for start / stop
- Partition above belt
- Wall Fan on Top Post
|
- Cable Tray
- Bin Rail
- Bottle Holder
- Dustbin Holder
- Drawer Cabinet
|
|
ITEM INFORMATION TO BE PROVIDED
|
- Item to moved
- Weight of one unit
- Total weight on conveyor
|
Product to be stopped / dropped at the end of conveyor or to be
transferred to another conveyor
|
